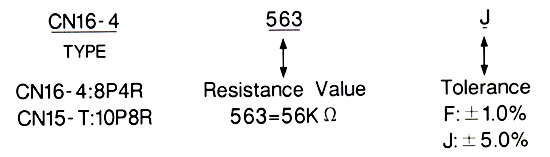

電 阻 類 電 容 類 發光二極体       -- 電 阻 類 品名:晶片排阻器 型號: 產品說明: Telecommunicatoion Equipment Lap-Top and Note-Book Computer TYPE CN16-4 CN15-T Physical Dimensions(mm)     Schematic Diagram     Power Rating 1/6W 1/32W Resistance Rating 10~1M 33~100K Resistance Tolerance ±1%,±2%,±5% ±5% Temperature Coefficient of Resistance ±200ppm/°C ±200ppm/°C *E-24 Series, For more special design of different resistance.   FERFORMANCE DATA Maximum Rated Operating Temperature +70°C Maximum Operating Temperature +125°C Short-time Overload ±1% Loading Life ±2% Moisture Life ±2% Temperature Cycle ±1% Resistance to Soldering Heat ±1%   HOW TO ORDER
