品名:RI-80高壓玻璃釉電阻
型號:

產品說明:
  1. SCOPE:
    This specification for approve relates to metal glaze fixed resistors manufactured by CHUAN-HAO parts' specification.


  2. TYPE DESIGNATION:
    The Type designation shall be in the following form :




TYPE STYLE DIMENSIONS (mm)
D L d H
MGRI80-5 5W 12 45 1 30�2
MGRI80-10 10W 12 75 1 30�2
MGRI80-20 20W 12 105 1 30�2
MGRI80-25 25W 12 130 1 30�2

TYPE TC(PPM蚓) RANGE TOLERANCE Limiting
Element (V)AC or DC
MGRI80-5 �350 1M-200M J 15KV
MGRI80-10 �350 1M-500M J 30KV
MGRI80-20 �350 1M-750M J 40KV
MGRI80-25 �350 1M-1000M J 50KV

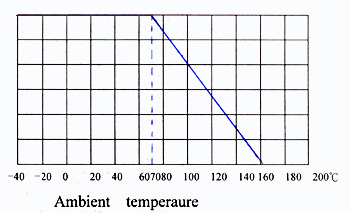

3.Derating Curve:
��硓or resistors operated in ambient temperature over 70蚓 power rating shall be derate in accordance with the above figure.

�

Power Derating Curve


TEST ITEMS TEST CONDITION TEST METHOD
JIS 5202
Operating Temp. Rnage -55 蚓~ +155蚓 MIL-R-10509
Insulation Resistance DC1000V Block 1Minute 10000M
Dielectric Withstanding Vaitage JIS5202 5-7 �1%
Moisture Resistance 10cycles per
MIL-STD-202 Method 106

�1.5%
Temp cycling -65� 25� 150� 25� C 5cyces �1%
Short time oper 2.5 Times of rated voltage for 5sec �1%
Losd Life 70� C Re on-off 1000hrs �5%
Solder Pot 270� C 3sec �1%
Vidration MIL-STD-202Method 204 �0.5%
Terminal strength Direct Load Twist test �1%
T. C. R � 350PPM �
DcorAC Limiting Element Voltage 5w-15KV 10W-30KV
20W-50KV 		�
Pulse overload JIS5202-5.8 �1%
